Rim1/2 antibody - 140 217 K.O.

RIMs are Rab3 effector proteins of the cytomatrix at the active zone
Rat monoclonal purified IgG
Cat. No.: 140 217
Amount: 100 µg
Price: $420.00
Cat. No. 140 217 100 µg purified IgG, lyophilized. Albumin and azide were added for stabilization. For reconstitution add 100 µl H2O to get a 1mg/ml solution in PBS. Then aliquot and store at -20°C to -80°C until use.
Antibodies should be stored at +4°C when still lyophilized. Do not freeze!
Applications

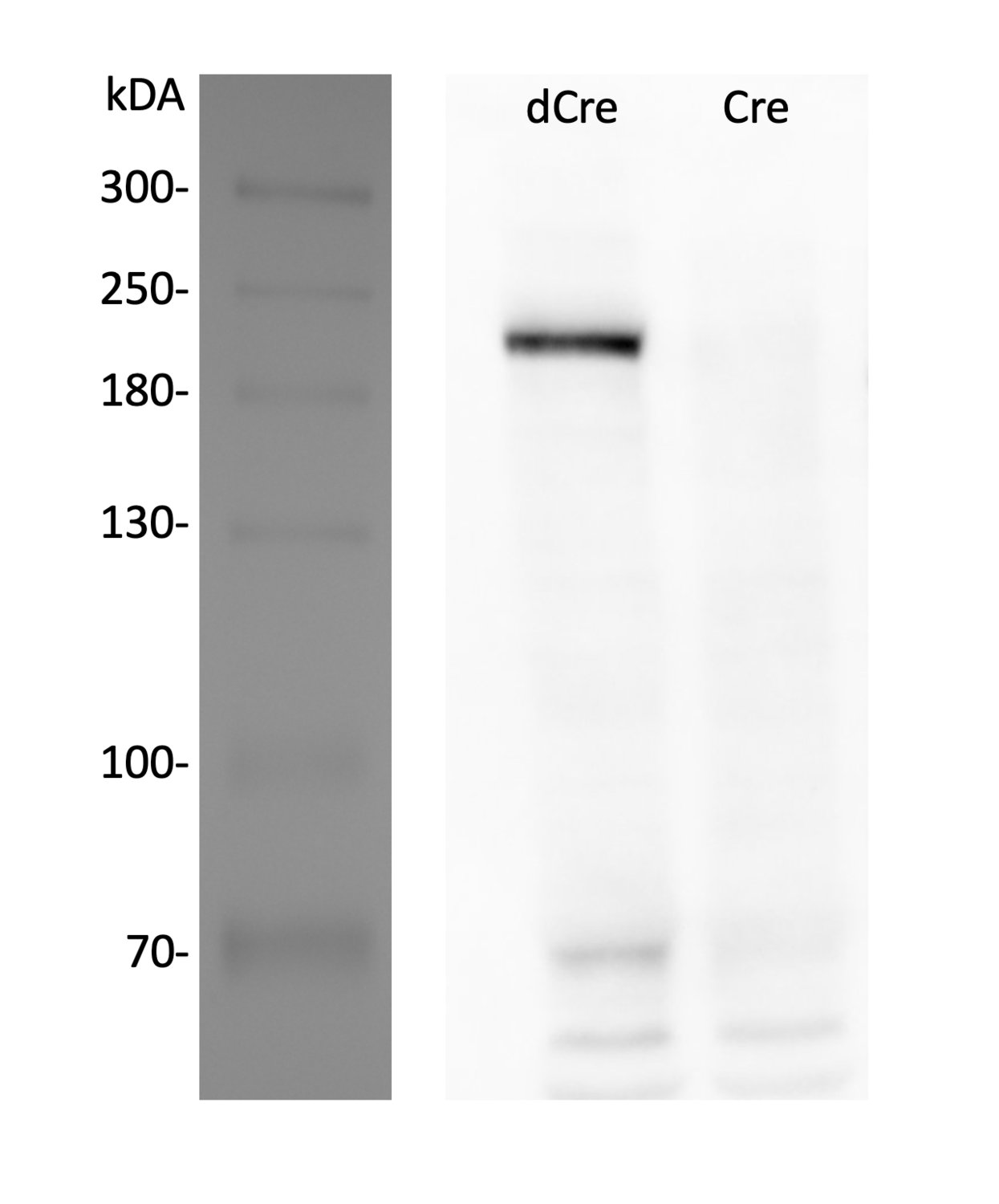

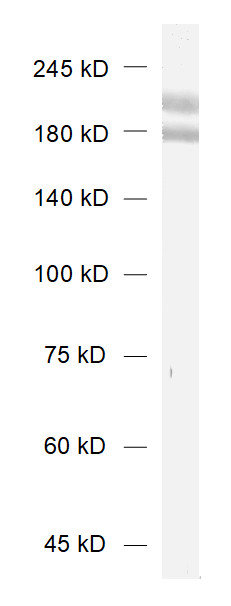

WB: 1 : 1000 (AP staining) gallery
IP: not tested yet
ICC: 1 : 500 gallery
IHC: 1 : 100 up to 1 : 500 (see remarks) gallery
IHC-P (FFPE): not recommended

Western blot (WB); separation of proteins by PAGE and subsequent transfer to a membrane. Detection of target molecules is carried out with antibodies. Some antibodies require special sample preparation steps. For details, please refer to the “Remarks” section.

Immunoprecipitation (IP); Immunoisolation or pulldown of a target molecule using an antibody. For details and product specific hints, please refer to the ”Remarks” section.

Immunocytochemistry (ICC) on 4% PFA fixed cells. Immunoreactivity is usually revealed by fluorescence. Some antibodies require special fixation methods. For details, please refer to the “Remarks” section.

Immunohistochemistry (IHC) on 4% PFA perfusion fixed tissue with 24h PFA post fixation. Immunoreactivity is usually revealed by fluorescence or a chromogenic substrate. Some antibodies require special fixation methods or antigen retrieval steps. For details, please refer to the ”Remarks” section.

Immunohistochemistry (IHC-P) of formalin fixed, paraffin embedded (FFPE) tissue (some antibodies require special antigen retrieval steps, please refer to the ”Remarks” section). Immunoreactivity is usually revealed by fluorescence or a chromogenic substrate.

Clone SY-53E12
Subtype IgG2a (κ light chain)
Immunogen Recombinant protein corresponding to Zn-finger-domain of rat RIM 2. (UniProt Id: Q9JIS1)
Reactivity Reacts with: mouse (Q99NE5, Q9EQZ7), rat (Q9JIS1, Q9JIR4).
Other species not tested yet.
Specificity RIM2 including splice variants, cross reacts to RIM1 when overexpressed. K.O. validated
Remarks

IHC: Antigen retrieval with citrate buffer pH 6 is required.

Data sheet Datasheet 140_217

References for Rim1/2 - 140 217

Protocol for single-molecule analysis of synaptic protein complex-mediated vesicle recruitment.
Kapadia A, Hafner AS
STAR protocols (2025) 64: 104249. 140 217 ICC; tested species: rat
Molecular and Anatomical Strengthening of "Winner" Climbing Fiber Synapses in Developing Mouse Purkinje Cells.
Nitta A, Yamasaki M, Miyazaki T, Konno K, Yoshimura H, Watanabe M
The Journal of neuroscience : the official journal of the Society for Neuroscience (2025) 4515: . 140 217 IHC-G; tested species: mouse
Cat. No.: 140 217
Amount: 100 µg
Price: $420.00
Protocol for single-molecule analysis of synaptic protein complex-mediated vesicle recruitment.
Kapadia A, Hafner AS
STAR protocols (2025) 64: 104249. 140 217 ICC; tested species: rat
Molecular and Anatomical Strengthening of "Winner" Climbing Fiber Synapses in Developing Mouse Purkinje Cells.
Nitta A, Yamasaki M, Miyazaki T, Konno K, Yoshimura H, Watanabe M
The Journal of neuroscience : the official journal of the Society for Neuroscience (2025) 4515: . 140 217 IHC-G; tested species: mouse
Background

RIMs are presynaptic active zone proteins that regulate Ca2+ triggered release of neurotransmitters. RIM 1α and RIM 2α are composed of an N-terminal zinc-finger domain, a central PDZ domain and two C-terminal C2 domains that are seperated by long alternatively spliced sequences.
RIM 1α is a putative Rab 3a effector and has been shown to interact with other active zone proteins like Munc13-1, ERC 1b, ERC 2 and α-liprins. Deletion of RIM 1α in mice impaired neurotransmitter release without changing the structure of the synapse.
RIM 2β consists of a specific N-terminus, the central PDZ domain and the C-terminal C2 domains. The mRNA for RIM 2β is transcribed from an internal promoter of the RIM 2α gene.
Shorter variants of RIM 2 which comprise only the C-terminal C2B domain and some flanking regions are referred to as NIM 2 / RIM 2γ and NIM 3 / RIM 3γ.
