PSD95 antibody - N3783 K.O.

PSD 95 is a component of postsynaptic densities in central synapses

This product was developed by

NanoTag-Biotechnologies

Camelid single domain antibodies consist only of one antigen binding site of a Alpaka heavy chain antibody. This antibody is a chimeric construct consisting of the anti-PSD 95 single-domain antibody genetically fused to rabbit IgG1 Fc domain.

Rabbit monoclonal recombinant IgG
Cat. No.: N3783
Amount: 100 µg
Price: $515.00
Cat. No. N3783

100 µg purified antibody lyophilized from PBS. Reconstitute with 100 µL 50% glycerol and store at -20°C or below.

Applications

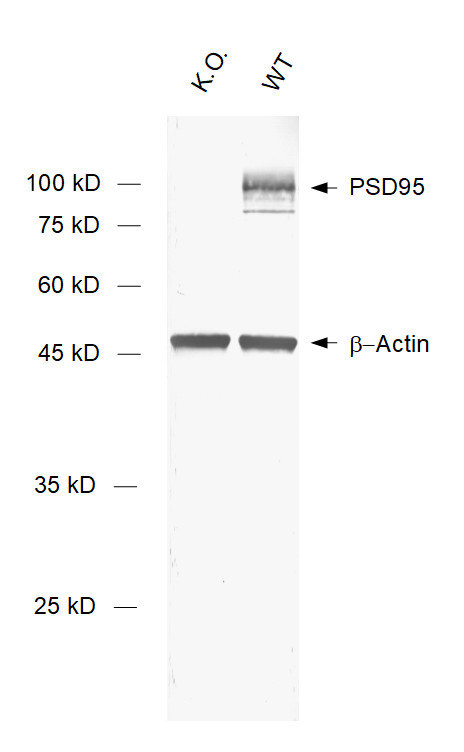

WB: 1 : 1000 gallery
IP: not tested yet
ICC: 1 : 500 (see remarks) gallery
IHC: 1 : 200 up to 1 : 500 (see remarks) gallery
IHC-P: 1 : 200 gallery
ExM: yes (see remarks) gallery

Western blot (WB); separation of proteins by PAGE and subsequent transfer to a membrane. Detection of target molecules is carried out with antibodies. Some antibodies require special sample preparation steps. For details, please refer to the “Remarks” section.

Immunoprecipitation (IP); Immunoisolation or pulldown of a target molecule using an antibody. For details and product specific hints, please refer to the ”Remarks” section.

Immunocytochemistry (ICC) on 4% PFA fixed cells. Immunoreactivity is usually revealed by fluorescence. Some antibodies require special fixation methods. For details, please refer to the “Remarks” section.

Immunohistochemistry (IHC) on 4% PFA perfusion fixed tissue with 24h PFA post fixation. Immunoreactivity is usually revealed by fluorescence or a chromogenic substrate. Some antibodies require special fixation methods or antigen retrieval steps. For details, please refer to the ”Remarks” section.

Immunohistochemistry (IHC-P) of formalin fixed, paraffin embedded (FFPE) tissue (some antibodies require special antigen retrieval steps, please refer to the ”Remarks” section). Immunoreactivity is usually revealed by fluorescence or a chromogenic substrate.

Expansion Microscopy (ExM) is a sample preparation and imaging method which employs a dense interconnected web of swellable polymer within a biological specimen. A significantly higher effective resolution can be achieved with a standard microscope setup. For additional experimental details, please refer to the Remarks section.

Clone 1B2
Subtype IgG1
Immunogen Recombinant protein corresponding to AA 68 to 251 from mouse PSD95 (UniProt Id: Q62108)
Reactivity Reacts with: mouse (Q62108), rat (P31016), human (P78352).
Other species not tested yet.
Specificity K.O. validated
Matching control protein/peptide 124-01P
Remarks

This antibody is a chimeric construct consisting of the anti-PSD 95 single-domain antibody 1B2 genetically fused to rabbit IgG1 Fc domain. It can be used in combination with standard anti-rabbit secondary reagents binding the IgG Fc-domain.
ICC: We recommend the PSD95 FluoTags N3702 for best results.
IHC: We recommend the PSD95 FluoTags N3702 for best results.
ExM: This antibody has been successfully used for the epitope-preserving magnified analysis of the proteome (eMAP) expansion microscopy method (Park et al. 2021. PMID: 34767453).
Variance from the standard protocol:
Clearing after gel-embedding: overnight at 37°C followed by 10 minutes at 88°C.

References for PSD95 - N3783

Simple and Highly Efficient Detection of PSD95 Using a Nanobody and Its Recombinant Heavy-Chain Antibody Derivatives.
Kilisch M, Gere-Becker M, Wüstefeld L, Bonnas C, Crauel A, Mechmershausen M, Martens H, Götzke H, Opazo F, Frey S
International journal of molecular sciences (2023) 248: . N3783 WB, ICC, IHC-P; tested species: mouse,rat
A Screen of Plant-Based Natural Products Revealed That Quercetin Prevents Pyroglutamylated Amyloid-β (Aβ3(pE)-42) Uptake in Astrocytes As Well As Resulting Astrogliosis and Synaptic Dysfunction.
Arndt H, Bachurski M, Yuanxiang P, Franke K, Wessjohann LA, Kreutz MR, Grochowska KM
Molecular neurobiology (2024) : . N3783 ICC; tested species: rat
Simple and Highly Efficient Detection of PSD95 Using a Nanobody and Its Recombinant Heavy-Chain Antibody Derivatives.
Kilisch M, Gere-Becker M, Wüstefeld L, Bonnas C, Crauel A, Mechmershausen M, Martens H, Götzke H, Opazo F, Frey S
International journal of molecular sciences (2023) 248: . N3783 WB, ICC, IHC-P; tested species: mouse,rat
Simple and Highly Efficient Detection of PSD95 Using a Nanobody and Its Recombinant Heavy-Chain Antibody Derivatives.
Kilisch M, Gere-Becker M, Wüstefeld L, Bonnas C, Crauel A, Mechmershausen M, Martens H, Götzke H, Opazo F, Frey S
International journal of molecular sciences (2023) 248: . N3783 WB, ICC, IHC-P; tested species: mouse,rat
Cat. No.: N3783
Amount: 100 µg
Price: $515.00
Simple and Highly Efficient Detection of PSD95 Using a Nanobody and Its Recombinant Heavy-Chain Antibody Derivatives.
Kilisch M, Gere-Becker M, Wüstefeld L, Bonnas C, Crauel A, Mechmershausen M, Martens H, Götzke H, Opazo F, Frey S
International journal of molecular sciences (2023) 248: . N3783 WB, ICC, IHC-P; tested species: mouse,rat
A Screen of Plant-Based Natural Products Revealed That Quercetin Prevents Pyroglutamylated Amyloid-β (Aβ3(pE)-42) Uptake in Astrocytes As Well As Resulting Astrogliosis and Synaptic Dysfunction.
Arndt H, Bachurski M, Yuanxiang P, Franke K, Wessjohann LA, Kreutz MR, Grochowska KM
Molecular neurobiology (2024) : . N3783 ICC; tested species: rat
Simple and Highly Efficient Detection of PSD95 Using a Nanobody and Its Recombinant Heavy-Chain Antibody Derivatives.
Kilisch M, Gere-Becker M, Wüstefeld L, Bonnas C, Crauel A, Mechmershausen M, Martens H, Götzke H, Opazo F, Frey S
International journal of molecular sciences (2023) 248: . N3783 WB, ICC, IHC-P; tested species: mouse,rat
Simple and Highly Efficient Detection of PSD95 Using a Nanobody and Its Recombinant Heavy-Chain Antibody Derivatives.
Kilisch M, Gere-Becker M, Wüstefeld L, Bonnas C, Crauel A, Mechmershausen M, Martens H, Götzke H, Opazo F, Frey S
International journal of molecular sciences (2023) 248: . N3783 WB, ICC, IHC-P; tested species: mouse,rat
Background

PSD 95 (postsynaptic density protein 95 kDa, also called SAP 90: synapse associated protein of 90 kDa and DLG 4) is a component of postsynaptic densities in central synapses. It contains three PDZ domains. The first and second PDZ domain localizes NMDA receptors and K+ channels to synapses, the third binds to neuroligins which are neuronal cell adhesion molecules that interact with β-neurexins and form intercellular junctions. Thus different PDZ domains of PSD 95 might be specialized for distinct functions.
